application:
Hotel hot water engineering, water engineering school center.

Features:
Waterproof stainless steel panel interface displays in English, customized interface.

Technical Parameters:
Device Model: PT9007 / PT9010 / PT9012 / PT9015
Display size: inches, 10 inches, 12 inches, 15 inches
Aspect ratio: 4: 3 or 16: 9
Features: Waterproof / general, all stainless steel waterproof panel
Communication interface: Standard UART interface, RS-232 interfaces, RS-485 interface.
Input voltage: selectable DC5 ~ DC42V;
Current job: there are differences according to the screen different;
Effective display size: According to the size of the screen;
Degree of resolution: HD, puqing
Backlight: LED
Working temperature: -20 ℃ ~ + 70 ℃, -30 ℃ ~ + 60 ℃
Installation: surface mounted, concealed installation in hot water distribution cabinet engineering.

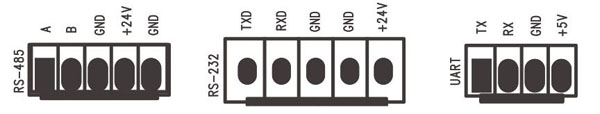

Wiring Diagram:
